Protein Interaction Assays to Study BRD/Histone Interactions in Live Cells

  • Study full-length bromodomain/histone-containing proteins or fragments
  • Detect protein interactions in live cells, even at low expression levels
  • Choose from prebuilt or custom assay options
  • All but NanoBRET® BRD4/Histone H3.3 Interaction Assay are discontinued

Size

Catalog number selected: N1830

$ 5,695.00
Your price:
Add to Cart
This product is discontinued
Add to Helix
This product is available under our Early Access program - Learn More
This product is available under our Catalog (FT) program - Learn More
NanoBRET® Bromodomain/Histone Interaction Assays
1 each
$ 5,695.00
Your price: Log in

Study BRD/Histone Interactions in the Natural Cellular Context

Bromodomain (BRD)-containing proteins are critical components of nuclear protein complexes involved in the recruitment of chromatin-modifying enzymes and transcriptional regulation of acetylated chromatin. The protein:protein interaction (PPI) of the BRD-containing proteins with acetylated histones is an important method of epigenetic regulation critical for cell health and development and is of great interest for drug targeting because dysfunction in BRD modulation has been implicated as a critical event in disease formation.

The NanoBRET® Bromodomain/Histone Interaction Assays enable interaction studies of bromodomain-containing proteins with full-length histones in the context of natural chromatin. In addition to the full-length bromodomain proteins, BRD fragments alone (BRD4, BRD9 and BRPF1) are also included for users that may want to understand the interaction of this isolated domain.

NanoBRET® assay technology is dependent upon energy transfer from a luminescent donor (NanoLuc® luciferase) to a fluorescent acceptor (HaloTag® NanoBRET® 618 Ligand). NanoLuc® luciferase HaloTag® protein are fused to the target proteins of interest and fusion proteins expressed at low cellular levels, enabling monitoring and screening studies of protein interactions that reflect true cellular physiology. The NanoBRET® Assay is fully reversible, enabling studies of both induction and inhibition of protein interactions.

Energy Transfer from NanoLuc to HaloTag NanoBRET Ligand 12749TA-W-a
Donor and Acceptor Signal Wavelengths for NanoBRET

Example NanoBRET® BRD/Histone Protein Interaction Assay Data

NanoBRET® BRD4 Assay
NanoBRET® BRD9 Assay
NanoBRET® BRPF1 Assay

Example BRD4 Assay Data: Monitoring Inhibition of Protein Interactions

This example shows the dose-dependent inhibition of BRD4 protein interaction with Histone H3.3 by JQ1 as measured by the decrease in the NanoBRET®™ signal.

BRD4 Interaction with Histone H3.3 in HEK293 Cells
BRD4 Interaction with Histone H3.3 in HCT116 Cells

Example BRD9 Assay Data: High Assay Specificity

In this donor saturation assay, cells were transfected with a constant amount of BRD9 FL- or BRD9 BD-NanoLuc® Fusion donor DNA and increasing amounts of Histone H3.3-HaloTag® Fusion acceptor DNA to represent increasing acceptor-to-donor (A:D) ratios. The negative control was a set of samples containing HaloTag® protein alone. Both NanoBRET® BRD9/Histone H3.3 Interaction Assays generate hyperbolic curves, which indicate detection of a specific BRET interaction.

NanoLuc-BRD9 FL and HaloTag-Histone H3.3 DSA
Donor saturation assay performed by transfecting cells with a constant amount of BRD9-NanoLuc® Fusion donor DNA.
NanoLuc-BRD9 BD and HaloTag-Histone H3.3 DSA
Donor saturation assay performed by transfecting cells with a constant amount of BRD9-NanoLuc® Fusion donor DNA

Example BRPF1 Assay Data: Assay Specificity

This donor saturation assay was performed by transfecting cells with a constant amount of BRPF1- or BRPF1-NanoLuc® Fusion donor DNA and increasing amounts of Histone H4-HaloTag® Fusion acceptor DNA to represent increasing amounts of acceptor-to-donor (A:D) ratios. The negative control was HaloTag® protein alone in place of the Histone H4-HaloTag® fusion. The NanoBRET® BRPF1/Histone H4 Interaction Assays generate hyperbolic curves, which indicate detection of a specific BRET interaction.

NanoLuc-BRPF1 FL and HaloTag-Histone H4 Donor Saturation
Donor saturation assay performed by transfecting cells with a constant amount of BRPF1-NanoLuc® Fusion donor DNA.
NanoLuc-BRPF1 BD and HaloTag-Histone H4 Donor Saturation
Donor saturation assay performed by transfecting cells with a constant amount of BRPF1-NanoLuc® Fusion donor DNA

Choose Starter Systems, Prebuilt or Custom NanoBRET® Assays

Get started with NanoBRET® PPI Assays in a format that suits your needs. Design your own assays using the NanoBRET® Starter Systems, or choose from prebuilt, optimized assays for a number of popular research targets including our newest collection of RAS pathway interaction assays. You can also consult with us to design a customized assay specific for your research.

Engineered Vectors Simplify Your Work

NanoLuc®-BRD4 Vectors
12900MA-W
NanoLuc®-BRD4 BD1 Fusion Vector sequence text file.
NanoLuc-BRD4 FL Fusion Vector
NanoLuc®-BRD4 FL Fusion Vector sequence text file.
NanoLuc®-BRD9 Vectors
12741MA-W
NanoLuc®-BRD9 BD Fusion Vector sequence text file.
12740MA-W
NanoLuc®-BRD9 FL Fusion Vector sequence text file.
NanoLuc®-BRPF1 Vectors
12742MA-W
NanoLuc®-BRPF1 BD Fusion Vector sequence text file.
12899MA-W
NanoLuc®-BRPF1 FL Fusion Vector sequence text file.
NanoBRET® Histone Vectors
12691MA-W
Histone H3.3-HaloTag® Fusion Vector sequence text file.
12692MA-W
Histone H4-HaloTag® Fusion Vector sequence text file.
NanoBRET® Control Vectors
12729MA-W
NanoBRET® Positive Control Vector sequence text file.
12730MA-W
p53-HaloTag® Fusion Vector sequence text file.
12731MA-W
NanoLuc®-MDM2 Fusion Vector sequence text file.

Specifications

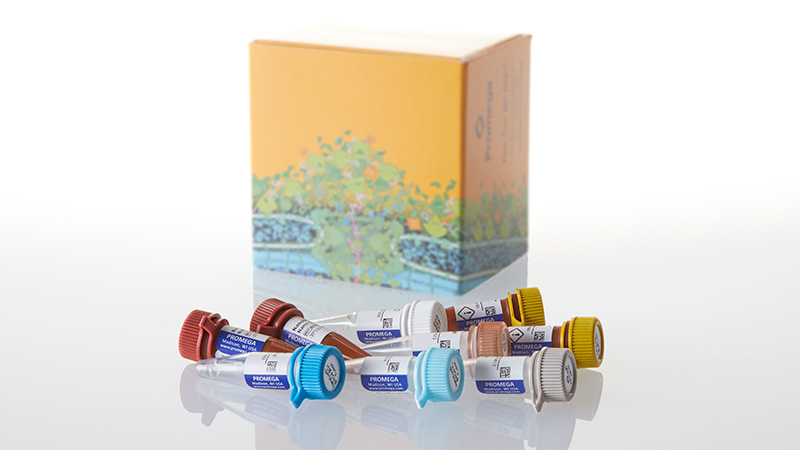

What's in the box?

Item Part # Size Available Separately

HaloTag® NanoBRET® 618 Ligand

G980A 2 × 20μl View Product

NanoBRET® Nano-Glo® Substrate

N157A 2 × 50μl View Product

p53-HaloTag® Fusion Vector

N159A 1 × 20μg

NanoLuc®-MDM2 Fusion Vector

N160A 1 × 20μg

Histone H3.3-HaloTag® Fusion Vector

N167A 1 × 20μg

NanoLuc®-BRD4 FL Fusion Vector

N169A 1 × 20μg

NanoLuc®-BRD4 BD1 Fusion Vector

N170A 1 × 20μg
