GenePrint® 10 System

B9510
customize-this-small
View information on global supply logistics

STR Analysis for Human Cell Line Authentication

  • Tolerates higher DNA amounts. Better balance for aneuploid samples
  • Reduced PCR Time. Amplification in less than 1.5 hours
  • Lower number of loci simplifies interpretation

Size

Catalog number selected: B9510

$ 811.00
Your price:
Add to Cart
This product is discontinued
Add to Helix
This product is available under our Early Access program - Learn More
This product is available under our Catalog (FT) program - Learn More
GenePrint® 10 System
50 reactions
$ 811.00
Your price: Log in

10-Locus STR System for Cell Line Authentication

Cell line misidentification or contamination can derail your research. Fortunately, there is an easy way to confirm the identity of human cell lines in your laboratory: short tandem repeat (STR) analysis.

The GenePrint® 10 System is a 10-locus multiplex system designed to generate a multi-locus DNA profile by amplifying human genomic DNA extracted from cell pellets, cell culture enrichment media and by direct amplification from storage cards.

Economical, Efficient Cell Line Authentication

The GenePrint® 10 System includes all reagents required for successful identification and authentication of human cell lines, as well as detection of cell line contaminants; the small kit size and lower reaction volume makes GenePrint® 10 an economical choice for confirmation of cell line identity.

The GenePrint® 10 System:

  • Improves lab efficiencies with rapid-cycling and direct-amplification from storage card samples.
  • Simplifies data analysis and comparison using loci in concordance with publicly available databases.
  • Generates optimal heterozygote balance using up to 10ng of DNA template.
  • Delivers greater consistency in detecting low-level mixtures, contaminants and genetic aberrations.

Configuration of the GenePrint® 10 System

13670MB-W
GenePrint® 10 provides co-amplification and four-color detection of ten loci, TH01, TPOX, vWA, CSF1PO, D16S539, D7S820, D13S317, D5S818 plus Amelogenin and D21S11.

Ready to Use in Your Workflow

Improved Balance with Large Template Input

16131ta-v3

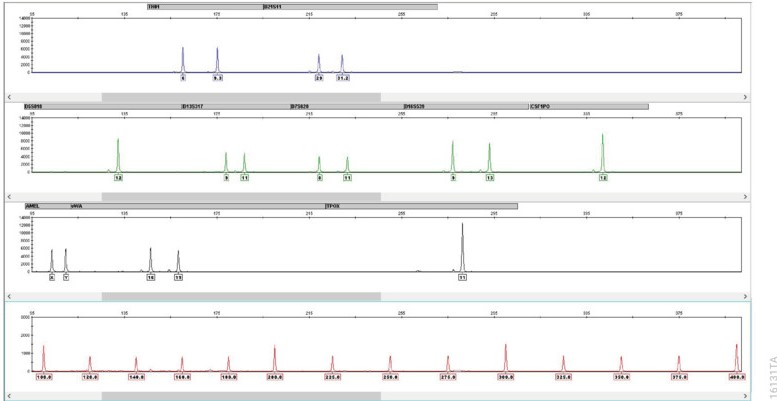

Amplification of 10ng of human DNA using the GenePrint® 10 System and analyzed with a Spectrum Compact CE System using a 3.0kV, 4-second injection.

Compatible with Direct Amplification

11349ta-2-w
Amplification of DNA from the HT-29 cell line on a 1.2mm punch from an FTA® card. Amplified products were separated on an Applied Biosystems® 3130 Genetic Analyzer (3kV, 4-second injection). Inter- and intra-imbalance is expected when working with cell lines in storage cards.

Improved Balance with Large Template Input

11592ma-2-w
Amplification of 10ng of human DNA analyzed using an Applied Biosystems® 3130 Genetic Analyzer (3.0 kV, 4-second injection).

Detection Instrument Compatibility and Data Analysis

The GenePrint® 10 System is compatible with the Spectrum Compact CE System and the Applied Biosystems® SeqStudio, 3130, 3130xl, 3500 and 3500xL Genetic Analyzers.

You may need to optimize protocols including the amount of template DNA, cycle number, injection conditions and loading volume for your laboratory instrumentation.

Panels and bins text files are required for automatic assignment of genotypes using the GeneMapper® and GeneMarker® software and are available for download.

Download Panels and Bins

Specifications

What's in the box?

Item Part # Size Concentration Available Separately

GenePrint® 10 5X Primer Pair Mix

B934A 1 × 250μl

GenePrint® 10 5X Master Mix

B935A 1 × 250μl

GenePrint® 10 Allelic Ladder Mix

B937A 1 × 50μl

2800M Control DNA

DD710A 1 × 25μl 10ng/μl View Product

Internal Lane Standard 600

DG107A 1 × 150μl View Product

Water, Amplification Grade

DW099A 1 × 1,250μl View Product

Certificate of Analysis

Search by lot number

Use Restrictions

Not For Medical Diagnostic Use.

Storage Conditions

BB

See Protocol for detailed storage recommendations.
